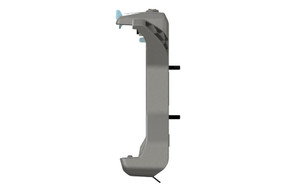

Dell 7230 12" QUAD RF Tablet vehicle docking station | 7160-1772-04 | 7160-1772-04

Quad (SMA) Antenna RF

• USB-A 9-Pin - (2) Fully powered (1.5 Amps each)
• USB-C (1) Fully powered (1.5 Amps)
• RJ45 Ethernet (1)
• RS232 Serial (1)
• Power Input: 19.5 Vdc
• Antenna: Quad RF (SMA)

NONE

• Compatible with the Dell Latitude 7230 Rugged Extreme tablet computer
• The docking station accommodates the tablet’s hand strap or magnet mount attachment.
• Access to all tablet control buttons and ports while the tablet is docked
• Downward-facing I/O ports; integrated cable strain relief and cable management system
• Configurable QUAD RF pass-through for additional customization
• The docking connector gasket provides additional water protection
• One-hand docking and release for efficient use all day long
• Keyed lock for theft deterrence
• Gamber-Johnson's rugged construction and reliability
• Composite design for reduced weight and durability
• VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments

• MIL-STD-810H Operational and Non-Operational Vibration/Shock Testing
• Environmental: Humidity, Thermal Shock, High/Low Temperature - Storage/Operational
• Cycle Test: 30,000 cycles, Latch, Lock, and Docking Connector
• Electrostatic Discharge: ISO 10605
• Shock Crash Hazard: Test SAE J1455
• EMC Testing: EN 55032, EN50498
• RoHS, FCC, CE, UKCA

3-Year Limited Warranty

Available

• Dell 7230 Rugged Extreme Tablet Vehicle Docking Station - QUAD RF (7160-1772-04)
• Mounting Hardware
• Installation Instructions
