Part #: 7170-0757-02

Brand: Gamber-Johnson

Product Description

Gamber-Johnson Heads Up Kit - No USB Hub. Kit Includes (18540) Heads Up Smartphone Cradle Bracket (7110-1237) Heads Up Articulating Mount (7160-1451-00) 13.3 inch Touch-screen (7160-1449-00) GJ Rugged…

Contact Us For Volume Pricing

1-877-437-3028

Chat

$1,318.82
Adding to cart… The item has been added

Same day shipping when ordered by 6PM ET

Brand:
Gamber-Johnson
SKU:
7170-0757-02
Shipping:
Calculated at Checkout
Weight:
6.65 LBS

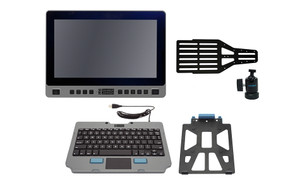

Gamber-Johnson Heads Up Kit - No USB Hub. Kit Includes (18540) Heads Up Smartphone Cradle Bracket (7110-1237) Heads Up Articulating Mount (7160-1451-00) 13.3 inch Touch-screen (7160-1449-00) GJ Rugged Lite Keyboard (7160-1470-00) Lite Keyboard Cradle. Purchase Heads-Up Charging Cradle separately.

The Heads Up DeX vehicle kit  includes a 13.3" touch screen display,  keyboard and cradle, smartphone dock mounting bracket and articulating mount; just add the appropriate Heads Up smartphone docking station to match your Samsung smartphone to complete your ergonomic DeX vehicle solution. Easily transition from office to vehicle with access to all your DeX optimized applications.  Gamber-Johnson’s Heads Up DeX solution positions the smartphone in the driver’s view - use the phone as a second screen or a touchpad device.

KIT INCLUDES

  • 13.3" Touch Screen Display - Includes power cable, HDMI cable, USB Type B cable (7160-1451-00)
  • Smartphone Dock Heads Up Articulating Mount (7110-1237)
  • Smartphone Dock Heads Up Mount Bracket (18540)
  • Installation Guides
  • Mounting Hardware

ANTENNA PASS-THROUGH

  • None

PORT REPLICATOR

  • 13.3" Touchscreen Display (7160-1451-00)
    • (1) HDMI
    • (1) VGA
    • (1) USB type C (2A @ 5V) fast charging
    • (1) USB type B (for Touch Control)
    • (2) USB 3.0 (fast charging 1.5A)
    • (1) Aux. out 3.5 mm
    • (1) DC input (Barrel Jack)
  • Rugged Lite Keyboard (7160-1449-00)
    • (1) USB Type A

POWER SUPPLY INCLUDED

  • No

FEATURES

  • Add a compatible Heads Up Smartphone Docking Station (7160-1394-00 Note9), (7160-1394-01 S9+), (7160-1394-02 S9), (7160-1394-03 S10+), (7160-1394-04 S10), (7160-1394-05 Note10), (7160-1394-06 Note10+), (7160-1394-07 S10e) to complete your DeX vehicle solution. Must order Separately.
  • Smartphone requires a Rebel phone case to be compatible with the smartphone docking station; (18551-00 Note9), (18551-01 S9+), (18551-02 S9), (18551-03 S10+), (18551-04 S10), (18551-05 Note10), (18551-06 Note10+) and (18551-07 S10e). Must order Separately.
  • This DeX Heads Up vehicle solution positions the smartphone dock next to the touch screen where you can use your phone as a secondary screen or a touchpad device
  • Mount the 13.3" touch screen to a Gamber-Johnson close-to-dash mount (7160-1346 or 7160-0822) or tablet display mount (7160-0529 or 7160-0494) for optimal viewing
  • 13.3 inch 5-point capacitive touch screen, high resolution 1920 x 1080, Brightness: 50-1000 nits (adjustable)
  • Quick release keyboard cradle; remove keyboard to a different work surface and return to the keyboard mount when complete
  • Gamber-Johnson offers several DeX solutions including:
    • The DeX Armrest vehicle solution that positions the smartphone dock in the vehicle armrest next to the driver where it is out of the way but still accessible
    • The DeX Desktop solution that enable the mobile worker to transition from vehicle to desktop seamlessly
    • Contact Gamber-Johnson for more information about their DeX solution kits and DeX components and accessories

CERTIFICATES & TESTING

  • MIL-STD 810G Shock and Vibration Specifications
  • MIL-STD 810G Temperature and Humidity (operational and storage)
  • SAE J1455 30mph Crash Testing
  • Cycle Testing: Keyboard - 2 Million Actuations

COMPLIANCE

  • FCC, CE, RoHS, REACH

WARRANTY

  • 1 Year Limited Warranty
  • Limited Lifetime Warranty
    • Smartphone Dock Heads Up Mount Bracket (18540)
