GDS® Hardwire USB Type-C Power Delivery Charger | RAM-GDS-CHARGE-V3FC-1U | RAM-GDS-CHARGE-V3FC-1U

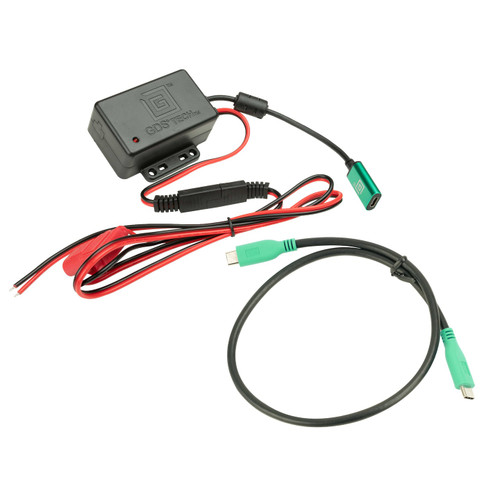

The GDS^® Modular Hardwire Charger with USB Type-C Female Connector is the ideal solution for providing power to any USB Type-C GDS^® vehicle solution. By connecting directly to the power source of your vehicle, the GDS^® Modular Hardwire Charger delivers USB Type-C power to your device with an input voltage of 10-28V. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new charger. Included with the charger is a .5 meter long USB Type-C male to male cable for connecting to any USB Type-C GDS^® vehicle dock.

FEATURES

• Hardwire charger includes USB Type-C female connection with an input voltage of 10-28V
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS^® Ecosystem^™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

HARDWARE INCLUDED

(1) Hardwire Charger
(1) .5 Meter USB Type-C Male to Male Cable

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10-28VDC

OUTPUT VOLTAGE

5V @ 1A (5W)
9V @ 2A (18W)
12V @ 2A (24W)

OUTPUT CURRENT

3A max

INPUT CONNECTOR

Female USB Type-C

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

150mm

OPERATING TEMPERATURE

-20°C to +70°C

STORAGE TEMPERATURE

-40°C to +85°C

COMPLIANCE

Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

CERTIFICATIONS

FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support

WARRANTY

3 year warranty

WEIGHT

0.51 lb
