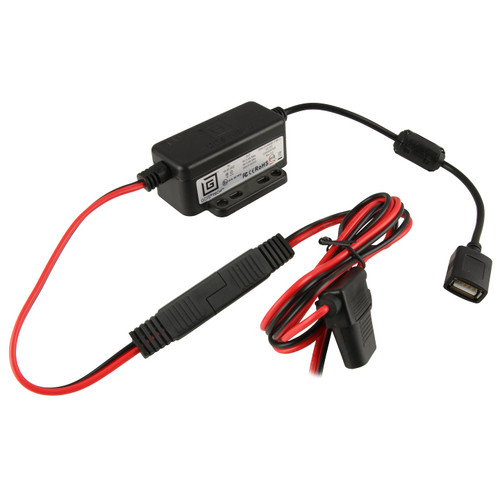

GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector | RAM-GDS-CHARGE-V7B1U | RAM-GDS-CHARGE-V7B1U

The GDS^® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS^® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less.

FEATURES

• Hardwire charger includes USB Type-A female connector
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS^® Ecosystem^™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10-30VDC

OUTPUT VOLTAGE

5-9VDC*

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

Female USB Type A

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY

3-year warranty

WEIGHT

0.32 lb

ADDITIONAL INFORMATION

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

INSTRUCTIONS

Instructions for Modular Hardwire Charger
