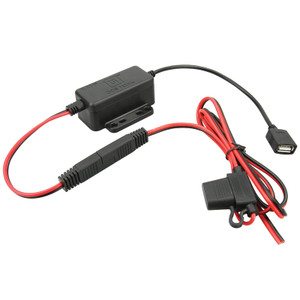

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector | RAM-GDS-CHARGE-V8BU

The GDS^® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS^® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range.

FEATURES

• Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS^® Ecosystem^™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

30-64VDC

OUTPUT VOLTAGE

5-9VDC*

OUTPUT CURRENT

2.5A max

INPUT CONNECTOR

Female USB Type A

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

.2 Meters

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

REGULATORY

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

CERTIFICATIONS

E-Mark Certification
RCM Certification
IEC/UL 62368-1

WARRANTY

3 year warranty

WEIGHT

0.32 lb

ADDITIONAL INFORMATION

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
