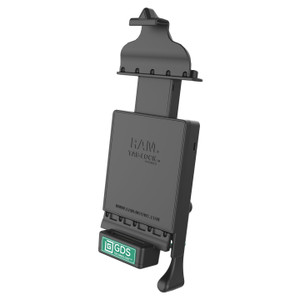

GDS® USB Type-C 3.1 Vehicle Dock for IntelliSkin® Next Gen Tablets | RAM-GDS-DOCKL-V9-OMT2U

The USB Type-C locking vehicle dock for IntelliSkin^® Next Gen features GDS^® Technology^™ to enable data sync and charging capabilities on the go. This spring-loaded, quick release cradle features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 18 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin^® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more.

FEATURES

• GDS^® Technology^™ offers a universal charging platform for most devices wrapped in IntelliSkin^® (not compatible with Lightning Connector iPads)
• Keyed lock for theft deterrence
• Modular design makes upgrading to a new tablet simple and cost effective
• Easy, quick release of your tablet for on-the-go applications
• Versatility of holder allows for attachment to many RAM^® mounting solutions

HARDWARE INCLUDED

Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

TRANSFER SPEED

5Gbps

WARRANTY

3 year warranty

WEIGHT

1.45 lb

ADDITIONAL INFORMATION

This dock is not compatible with iPad Pro 12.9 IntelliSkin^® Next Gen. The charging requirements of this dock will not support any lightning connector iPads such as the 7th, 8th & 9th Gen. To support any of these iPad models, see RAM-GDS-DOCKL-V9-OMT2U.

INSTRUCTIONS

GDS^® Vehicle Dock Setting Guide

GDS^® Locking Vehicle Dock Assembly Guide

DOCUMENTS

On Road Catalog

Samsung Mounting Solutions Catalog

Apple Mounting Solutions Catalog

Material Handling Catalog

GDS^® Technology^™ Catalog
