KIT: Panasonic Toughbook 40 QUAD RF LITE Port Replication laptop vehicle docking station (7160-1728-07) and LIND 120W Auto Power Adapter with Bare Wire Lead (7300-0461) | 7170-0944-02 | 7170-0944-02
- Brand:
- Gamber-Johnson
- SKU:
- 7170-0944-02
- Weight:
- 4.00 LBS
- Shipping:
- Calculated at Checkout

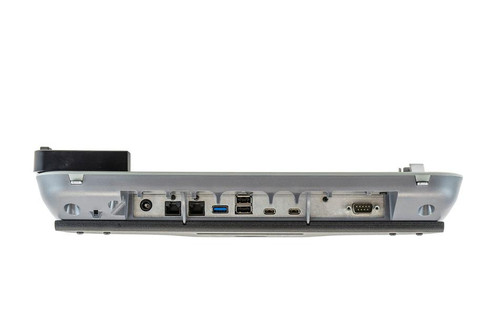

KIT: Panasonic Toughbook 40 QUAD RF LITE Port Replication laptop vehicle docking station (7160-1728-07) and LIND 120W Auto Power Adapter with Bare Wire Lead (7300-0461) | 7170-0944-02
This docking station is designed for reliable compatibility with the Panasonic Toughbook 40 rugged computer. This docking station features Quad RF antenna pass-through and lite port replication including: Ethernet, Serial, USB-A, and USB-C. Gamber-Johnson Toughbook 40 docking station kit includes Panasonic Toughbook 40 docking station with Quad RF (7170-0944-07) and Lind external power adapter (7300-0461).
ANTENNA PASS-THROUGH
- Quad RF (SMA)
PORT REPLICATOR
- Panasonic Certified Electronics
- (2) Ethernet, RJ45
- (1) Serial, 9-pin
- (2) USB-C 3.2 (Max 1.5A@5V)
- (1) USB-C 2.0 (500mA) front facing
- (1) USB-A 3.2 (900mA) - 9 pin
- (2) USB-A 2.0 (500mA) - 4 pin
- Power input (15V)
POWER ADAPTER
- Yes, includes an external Lind 120W auto bare wire leads power adapter (7300-0461)
FEATURES
- Uses Panasonic Toughbook Certified electronics for reliable connectivity
- Access to all computer control buttons and most ports while docked
- Rear-facing I/O ports; integrated cable strain relief and cable management system
- LED indicator light reflects docking connection to ensure proper docking
- Shutter cover for extra docking connector protection
- Designed to the footprint of the computer to preserve cabin space
- Right-facing docking/release latch for easy docking and undocking
- Keyed lock for theft deterrence
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE
- SAE J1455 Shock Crash Hazard Test
KIT INCLUDES
- Panasonic Toughbook 40 Docking Station, Lite Port, Quad RF (7160-1728-07)
- Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic (7300-0461)
- Mounting Hardware
- Installation Instructions
WARRANTY
- 3-Year Limited Warranty
EXTENDED WARRANTY
- Yes - see Gamber Guard
