KIT: Panasonic Toughbook G1/G2 Docking Station with LITE Port Replication, No RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0968-00 | 7170-0968-00
- Brand:
- Gamber-Johnson
- SKU:
- 7170-0968-00
- Shipping:
- Calculated at Checkout
- Weight:
- 2.50 LBS

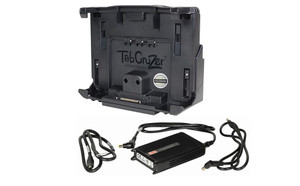

KIT: Panasonic Toughbook G1/G2 Docking Station with LITE Port Replication, No RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0968-00
This Panasonic Toughpad FZ-G1/G2 docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards. This docking station features lite port replication to connect peripherals and a VESA 75mm mounting pattern. This kit includes a LIND power adapter.
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- Panasonic certified electronics
- (1) Ethernet - RJ45
- (1) Serial - D-sub 9-pin
- (2) USB 3.0 (900mA) - 9 pin
- Dual RF Pass-through (optional) - TNC
- Power input - 16VDC
- Antenna Switch
POWER SUPPLY
- Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
FEATURES
- Compatible with the Panasonic Toughpad FZ-G1 and G2 tablet computers with small or large bumper guards
- Panasonic certified electronics
- Docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.
- Access to all tablet control buttons and ports while tablet is docked
- Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer
- Upward-facing I/O ports; integrated cable strain relief and cable management system
- Keyed lock for theft deterrence
- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
CERTIFICATES & TESTING
- Toughbook Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE, C-TICK, UKCA
- SAE J1455 Shock Crash Hazard Test
KIT INCLUDES
- Panasonic FZ-G1 / G2 Docking Station
- Mounting Hardware
- LIND 11-16V Auto Power Adapter
- Installation Instruction
WARRANTY
- 3-Year Limited Warranty
- Explore our extended warranty program
