KIT: Panasonic Toughbook G1 THIN Docking Station with LITE Port Replication, No RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0969-00 | 7170-0969-00

KIT: Panasonic Toughbook G1 THIN Docking Station with LITE Port Replication, No RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0969-00 | 7170-0969-00

Part #: 7170-0969-00

Brand: Gamber-Johnson

Product Description

KIT: Panasonic Toughbook G1 THIN Docking Station with LITE Port Replication, No RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0969-00 …

Contact Us For Volume Pricing

1-877-437-3028

Chat

$615.29
Adding to cart… The item has been added

Same day shipping when ordered by 6PM ET

Brand:
Gamber-Johnson
SKU:
7170-0969-00
Shipping:
Calculated at Checkout
Weight:
2.50 LBS

KIT: Panasonic Toughbook G1 THIN Docking Station with LITE Port Replication, No RF, VESA Hole Pattern (7160-0487-20) with LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) | 7170-0969-00

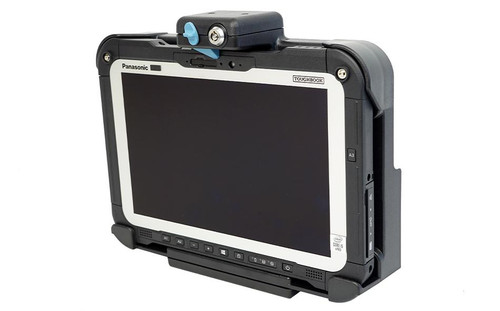

The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap for the tablet or connection to an external antenna. This dock features lite port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle. This kit includes an auto power adapter.

ANTENNA PASS-THROUGH

  • None

PORT REPLICATOR

  • Panasonic certified electronics
  • (1) Ethernet - RJ45
  • (2) USB 3.0 (900mA) - 9 pin
  • Dual RF Pass-through (optional) - TNC
  • Power input - 16VDC
  • Antenna Switch

POWER SUPPLY

  • Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)

FEATURES

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small or large bumper guards
  • Panasonic certified electronics
  • Docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

CERTIFICATES & TESTING

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic FZ-G1 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

WARRANTY
