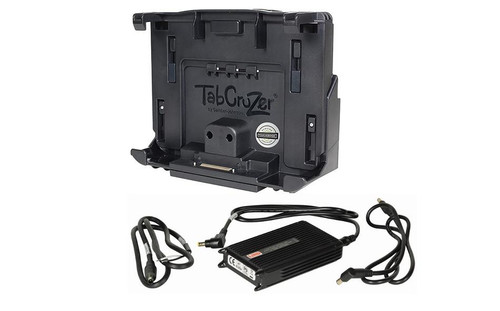

KIT: Panasonic Toughpad FZ-G1/G2 Docking Station, No RF, VESA Hole Pattern with LIND 11-16V Auto Power Adapter with Bare Wire Lead | 7170-0930-00 | 7170-0930-00

KIT: Panasonic Toughpad FZ-G1/G2 Docking Station, No RF, VESA Hole Pattern with LIND 11-16V Auto Power Adapter with Bare Wire Lead | 7170-0930-00 | 7170-0930-00

Part #: 7170-0930-00

Brand: Gamber-Johnson

Product Description

KIT: Panasonic Toughpad FZ-G1/G2 Docking Station, No RF, VESA Hole Pattern with LIND 11-16V Auto Power Adapter with Bare Wire Lead | 7170-0930-00 This Panasonic Toughbook G2 / Toughpad FZ-G1&n…

Contact Us For Volume Pricing

1-877-437-3028

Chat

$638.82
Adding to cart… The item has been added

Same day shipping when ordered by 6PM ET

Brand:
Gamber-Johnson
SKU:
7170-0930-00
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

KIT: Panasonic Toughpad FZ-G1/G2 Docking Station, No RF, VESA Hole Pattern with LIND 11-16V Auto Power Adapter with Bare Wire Lead | 7170-0930-00

This Panasonic Toughbook G2 / Toughpad FZ-G1 docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards. This docking station features full port replication to connect peripherals and a VESA 75mm mounting pattern. This kit includes a LIND power adapter.

ANTENNA PASS-THROUGH

  • None

PORT REPLICATOR

  • Panasonic certified electronics
  • (1) Ethernet - RJ45
  • (1) Serial - D-sub 9-pin
  • (1) VGA - D-sub 9 pin
  • (1) HDMI - 19 pin
  • (2) USB 3.0 (900mA) - 9 pin
  • Dual RF Pass-through (optional) - TNC
  • Power input - 16VDC
  • Antenna Switch

POWER SUPPLY

  • Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)

FEATURES

  • Compatible with the Panasonic Toughbook G2 and Toughpad FZ-G1 tablet computers with small or large bumper guards
  • Panasonic certified electronics
  • Docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

CERTIFICATES & TESTING

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic FZ-G1 / G2 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

WARRANTY
