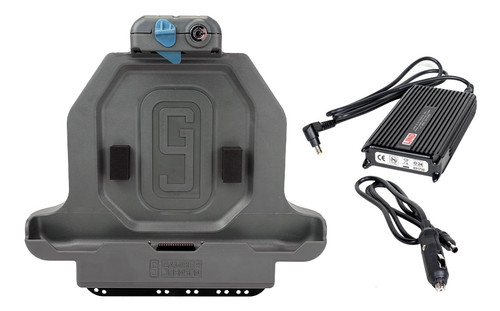

KIT: Zebra ET51/56 8" SLIM NO RF Full port replication docking station (7160-1506-20) and LIND Auto Power Adapter (7300-0415) | and LIND Auto Power Adapter (7300-0415) | 7170-0854-00
- Brand:
- Gamber-Johnson
- SKU:
- 7170-0854-00
- Weight:
- 2.20 LBS
- Shipping:
- Calculated at Checkout
KIT: Zebra ET51/56 8" SLIM NO RF Full port replication docking station (7160-1506-20) and LIND Auto Power Adapter (7300-0415) | KIT: Zebra ET51/56 8" SLIM NO RF Full port replication docking station (7160-1506-20) and LIND Auto Power Adapter (7300-0415)
Gamber-Johnson's Zebra ET51/56 8" SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. This kit includes a LIND auto power adapter. Now shipping.
*Starting Aug 23rd 2022 Gamber-Johnson does not offer HDMI output on all ET5X docks because of global video chip shortages
ANTENNA PASS-THROUGH
- None
PORT REPLICATOR
- Zebra Certified Electronics
- USB 3.0 (2) - 9 pin (900mA)
- RS232 Serial (1) - Power on pin 9 (825mA)
- Ethernet (1) - RJ45 (322 mb/s)
- Power Input: 12VDC
POWER SUPPLY INCLUDED
-
Yes - LIND 11-16 VDC input range, 12 VDC output voltage, 3.5 Amps output current with cigarette lighter adapter (7300-0415)
FEATURES
- Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
- This dock does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the docking station
- Compatible with Windows or Android operating systems
- Access to all control buttons and ports while the tablet is safely docked
- POGO pin connector provides power to charge the Zebra tablet while docked
- Bottom-facing I/O ports; integrated cable restraint/cable management system
- Guide pins prevent damage to the docking connection when docking the tablet
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of docking station
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
TESTING & CERTIFICATES
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certifications
KIT INCLUDES
- Zebra ET51/56 8" SLIM Port Replication Docking Station
- LIND Power adapter
- Mounting hardware
- Installation guide
WARRANTY
- 3-Year Limited Warranty
- Explore our extended warranty program
