  5. Panasonic Toughbook 20 CRADLE. (No port replication) Keyed alike. (replaces part number 7160-0803-XX) | 7160-1265-10 | 7160-1265-10
Panasonic Toughbook 20 CRADLE. (No port replication) Keyed alike. (replaces part number 7160-0803-XX) | 7160-1265-10 | 7160-1265-10

Panasonic Toughbook 20 CRADLE. (No port replication) Keyed alike. (replaces part number 7160-0803-XX) | 7160-1265-10 | 7160-1265-10

Part #: 7160-1265-10

Brand: Gamber-Johnson

Product Description

Panasonic Toughbook 20 CRADLE. (No port replication) Keyed alike. (replaces part number 7160-0803-XX) | 7160-1265-10 This Gamber-Johnson Laptop docking station is designed to work with the Pan…

Contact Us For Volume Pricing

1-877-437-3028

Chat

MSRP: $486.49
$481.77
or 4 payments of $120.44 with
ⓘ
Minimum Advertised Price
(You save $4.72 )
Adding to cart… The item has been added

Same day shipping when ordered by 6PM ET

Brand:
Gamber-Johnson
SKU:
7160-1265-10
Shipping:
Calculated at Checkout
Weight:
5.00 LBS

Panasonic Toughbook 20 CRADLE. (No port replication) Keyed alike. (replaces part number 7160-0803-XX) | 7160-1265-10

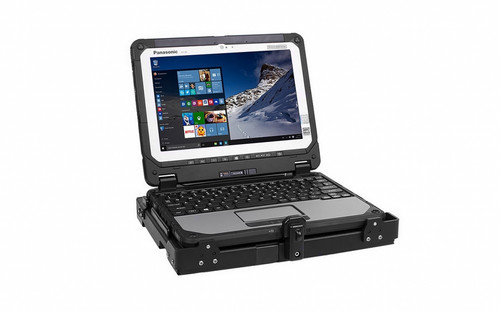

This Gamber-Johnson Laptop docking station is designed to work with the Panasonic Toughbook® 20 and G2 computer tablets with attachable keyboards. Position the computer in tablet or laptop mode and remove the computer to use outside your mobile office.  The docking station offers full port replication to support a mobile office environment and the keyed lock provides additional security to protect your investment.

ANTENNA PASS-THROUGH

  • None

PORT REPLICATION

  • None

POWER SUPPLY

  • Power adapter is not included, please use one of the following:
    • LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
    • LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
    • LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
    • LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
    • LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

FEATURES

  • Compatible with the Panasonic Toughbook 20 and G2 2-in-1 tablet computers with attachable keyboards
  • Panasonic Certified electronics
  • Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
  • Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Keyed lock for theft deterrence. NOTE: The lock secures the Toughbook 20 keyboard and tablet, but secures only the keyboard for the G2.
  • VESA 75 mm mounting pattern
  • 3-year limited warranty

TESTING & CERTIFICATES

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic Toughbook 20/G2 Cradle
  • Mounting Hardware
  • Installation Instructions

WARRANTY
