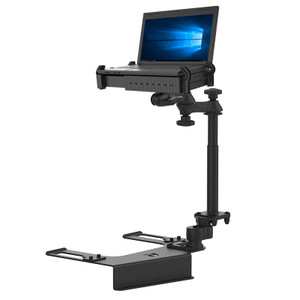

"RAM® No-Drill™ Laptop Mount for '14-19 Chevrolet Silverado + More | RAM-VB-193-SW1"

This RAM^® No-Drill^™ laptop stand system installs quickly and easily into a variety of Chevrolet and GMC vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

FEATURES

• RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments
• Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
• Made of powder-coated steel and high-strength composite
• Backed by a lifetime warranty

HARDWARE INCLUDED

Assembly Hardware
(2) Leg Clamps
(2) 1/4"-20 Hex Nuts
(2) 1/4" Flat Washers
(2) 1/4" Lock Washers

TRAY DIMENSIONS

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

BALL SIZE

C Size (1.5")

MATERIALS

Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE

Box

WEIGHT

24.0 lb

ADDITIONAL INFORMATION

This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim nearest to the passenger door may need to be cut or modified to accommodate the RAM^® No-Drill^™ base once installed. If this cannot be done in your vehicle, or you are not comfortable with this, you should not purchase this product. Note that the RAM-VB-191-SW1 will not work with the 4x4 lever on the center hump of the vehicle. The RAM-VB-191-SW1 is for 4x2 trucks only.

INSTRUCTIONS

Tough-Tray Assembly Guide

RAM No-Drill Seat Bases Instructions 193 Series

RAM^® Adjust-A-Pole^™ Instructions

Upper Tele-Pole Assembly Guide

DOCUMENTS

On Road Catalog
