"RAM® X-Grip® Drill-Down Double Ball Mount for 12"" Tablets | RAM-B-101-C-UN11U"

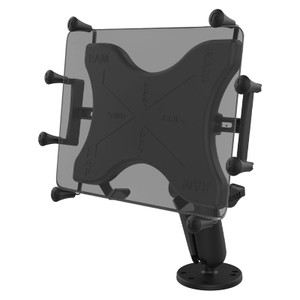

The RAM-B-101-C-UN11U consists of (2 QTY) 2.5" diameter round bases with the universal AMPS hole pattern, long double socket arm and universal X-Grip^® clamping cradle for 12" tablets. The X-Grip^® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip^® clamping cradle expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets. The X-Grip^® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

FEATURES

• Complete flat surface, drill-down mounting solution for the RAM^® X-Grip^® 12" tablet holder
• Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; easy access grip knobs on the back of the holder allow for the quick release of your device
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

HARDWARE INCLUDED

Assembly Hardware

HOLDER DIMENSIONS

Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

SOCKET TO SOCKET LENGTH

5.31"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

1.85 lb

ADDITIONAL INFORMATION

This holder is compatible with the iPad Pro 12.9 without case only.

INSTRUCTIONS

Large RAM^® X-Grip^® Assembly Guide

DOCUMENTS

How to Find the Right Holder for Your Tablet
