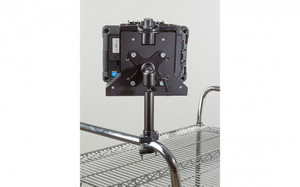

SMALL POLE MOUNT (Includes 7110-1231 Pipe Clamp, 7110-1234 Small Joiner Assembly, 14142 100mm extension, 14145 threaded adapter, 14139 Vesa Adapter Plate) | | 7170-0594

• Vibration environment - joiner holds up to 3 lbs. (1.4kg)
• Static environment - joiner holds up to 22 lbs (10kg)

Note: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner. The small joiner should not be used for mounting TV screens.

• Pipe/channel clamp – fits pipe from 0.59” (1.5 cm) to 1.18” (3.0 cm) diameter
• Articulated joiner with tension handle – position display for the proper viewing angle
• VESA 75mm mounting adapter – fits most displays
• 100mm extension (included) to increase the range of operation
• Anodized aluminum with black finish
• Kit includes:
  • Pole clamp (item no. 17243)
  • Small joiner (item no. 7160-0286)
  • 100mm extension (item no. 14142)
  • Threaded adapter (item no. 14145)
  • VESA 75mm adapter plate (item no. 14139)
• Assembly required

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.

• Recommend use of Loctite® 9460, 9461, or 9466 on all M20 size threads (Loctite not included)
• Loctite EA 9460
• Loctite EA 9461
• Loctite EA 9466
