Smart App Online UPS Series, 1500 VA / 1350 W, 8 × NEMA 5-15R | OL1500RTXL2UN

Product Overview

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

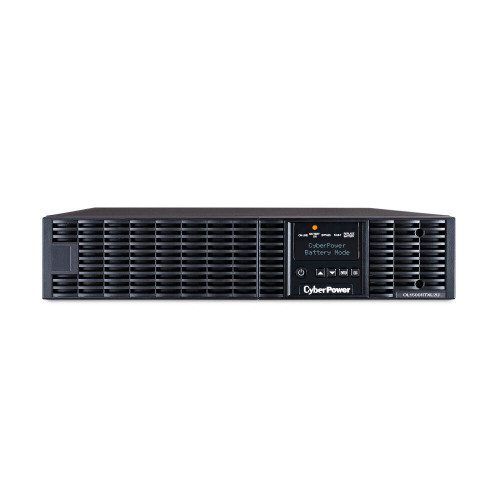

The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.

Product Features

• Double-Conversion TopologyProvides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a zero millisecond transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
• Sine Wave OutputKeeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
• PowerPanel® Business Edition SoftwareProvides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
• RMCARD205Is a full-featured network management card. It enables remote management via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
• LCD Control PanelDisplays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.
• Extended Battery Module (EBM)Extends runtime by adding up to 10 EBMs.
• Fast Charge TechnologyAllows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within 4 hours regardless of the number of EBMs.
• Smart Battery Management (SBM)Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
• GreenPower UPS™ ECO ModeImproves UPS efficiency up to 95%; saves on electrical and cooling costs.
• Hot-Swappable BatteriesKeep equipment running by eliminating downtime during UPS battery replacement.
• Upgradeable UPS firmwareManages the unit’s features and functions.
• Critical & Non-Critical Load BanksMaximize the output of the UPS by setting non-critical loads to shut off allowing additional runtime for critical load outlets.
• Emergency Power Off (EPO)Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
• Generator CompatibleEnsures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
• Converter ModeProvides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
• USB & Serial ConnectivityEnables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
• EMI/RFI FiltersPrevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
• Data Line Surge ProtectionPrevents power surges that travel through telephone and Ethernet lines from causing damage to your equipment
• Audible AlarmsIdentify when the model is running on battery power, overloaded, or has a low battery.
• Resettable Circuit BreakerInterrupts an electric current in a circuit when the current becomes too high.
• LED Status LightsIndicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.
• Rack/Tower VersatilityAllows for horizontal rack or vertical tower installation.
• Three-Year WarrantyGives you peace of mind knowing we will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
• Connected Equipment GuaranteeAffirms we will repair or replace properly connected equipment if it is damaged by a power surge.
