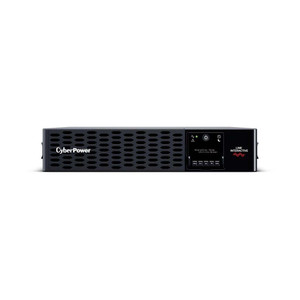

Smart App Sinewave, 3000 VA / 3000 W, 4 × NEMA 6-20R; 2 x NEMA L6-20R | PR3000RTXL2UHVAN

Product Overview

The PR3000RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR3000RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR3000RTXL2UHVAN.

Product Features

• Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Line-Interactive TopologyExists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
• Sine Wave OutputProvides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
• Battery Equalization TechnologyBattery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
• Fast Charge TechnologyAllows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
• Rotatable Multifunction LCD PanelTilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
• Toolless Battery Panel AccessMakes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
• Extended Battery Modules (EBMs)Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime.
• Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Data-Line ProtectionPrevents power surges that travel through Ethernet lines from causing damage to electronics.
• GreenPower UPS™ Bypass DesignIs a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Rack/Tower VersatilityAllows for horizontal rack or vertical tower installation.
• PowerPanel® Business Edition SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
• ENERGY STARThis model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
• Three-Year WarrantyCyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
• Connected Equipment GuaranteeCyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
